ST UPC Optical fiber pigtail Simplex 0.9mm Tight Buffered PVC G652D OS1

Product Categories
CFOFC Communications Ltd.
Contact Now

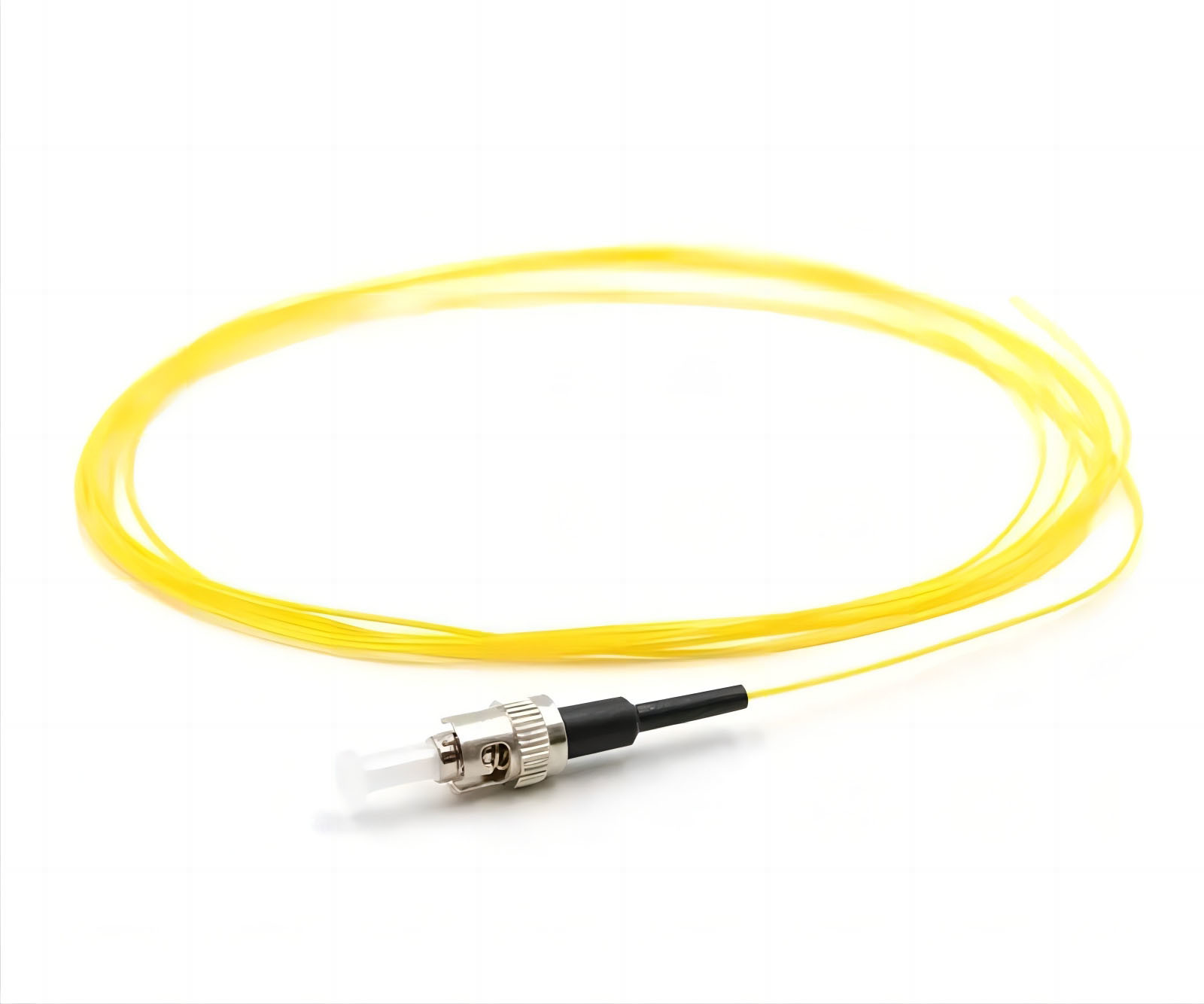

ST UPC Optical fiber pigtail Simplex 0.9mm Tight Buffered PVC G652D OS1

Brand Name : CFOFC

Model Number : CFOFC-Single Mode Tight Buffered ST pigtails

Certification : ROHS ISO 9001

Place of Origin : Shenzhen

MOQ : 100

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 10000pcs/day

Delivery Time : 5-8 work days

Packaging Details : standard packing or reel packing

Product name : G652D Tight Buffered ST 0.9mm pigtails

Fiber type : SM

Connector type : ST

Material : LSZH

Fiber count : 1

Diameter : 0.9 MM

Contact Now

ST UPC Optical fiber pigtail Simplex 0.9mm Tight Buffered PVC singlemode G657A1
Description Of ST Fiber pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.CFOFC build virious of fiber optic pigtails with 1F 4F 6F 8F 12F with standard connectors LC, FC,SC, ST, MU, MTRJ, MPO, D4, DIN, SMA, E2000, ect, UPC or APC polished.
Specification Of ST Fiber Pigtail
Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 2/5
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80

Feature of Fiber Patch Cord
  • Low insertion loss, high return loss
  • Small, light, high dense connection
  • Standard exact plastic material
  • High credibility and stability
  • Good in repeatability and exchangeability
  • >Available for simplex and duplex
  • >The outer jacket can be PVC, LSZH, Armored etc
  • >Available for different connectors: SC, LC, FC, ST, MPO, MTP, MU, DIN, D4, E2K etc
  • >Fiber Type: Single mode fiber G652D, G657A1 and G657A2, Multimode fiber OM1, OM2, OM3 and OM4 are available
  • >Low insertion loss and high return loss, high dense connection, easy for operation
  • >Customer lengths and connectors are available upon request

Application Of ST Fiber pigtail

  • Data Centre
  • Telecommunication networks
  • CATV
  • LAN and WAN
  • FTTX
  • Broadband network
ST UPC Optical fiber pigtail Simplex 0.9mm Tight Buffered PVC G652D OS1

The reason why Choose us:

1. Our shipping time is strictly controlled

2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer

3. Our company has rich export experience and is familiar with the customs policies of various countries

4. Large product inventory with massive production line

5. China's professional gas detection leader

6. Product distribution involves multi-fields, dozens of countries including some developed countries.

FAQ

1. Are you factory direct?

as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

2. What is your main products?

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS

Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord

3. Product quality guarantee period?

20 years Guarantee for fiber optic cable

4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
